42-frame stepper motor

Stepper motor paired with MSP42 in the configurator. Check the outline, then confirm the nameplate and the mounting holes.

Stepper motor outline.

42Frame

Two-phase 1.8°Stepper

Open / closed loopOptional

MSP42Matched code

Outline and dimensions

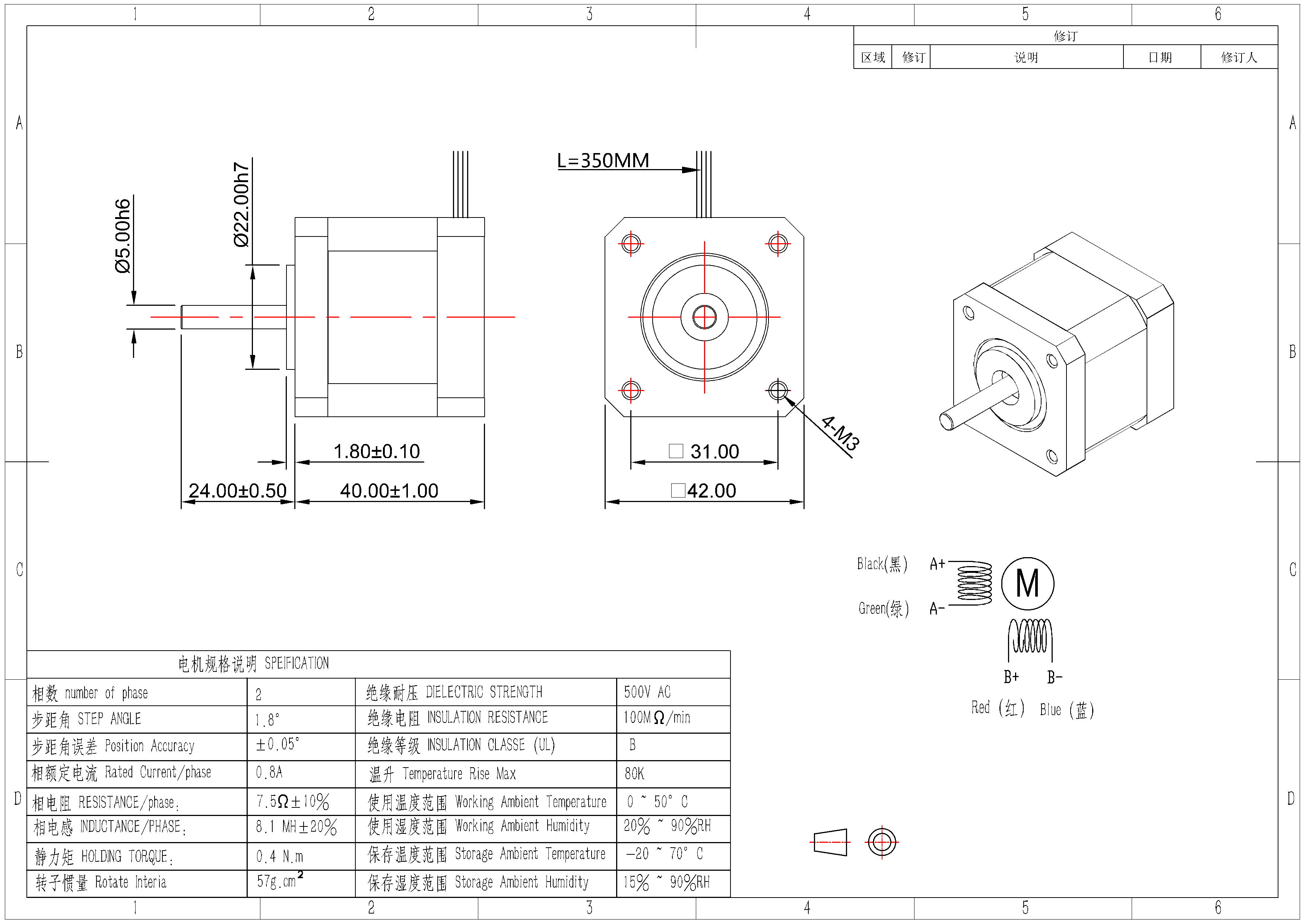

MSP42 standard stepper dimension drawing — MSP42 · standard motor

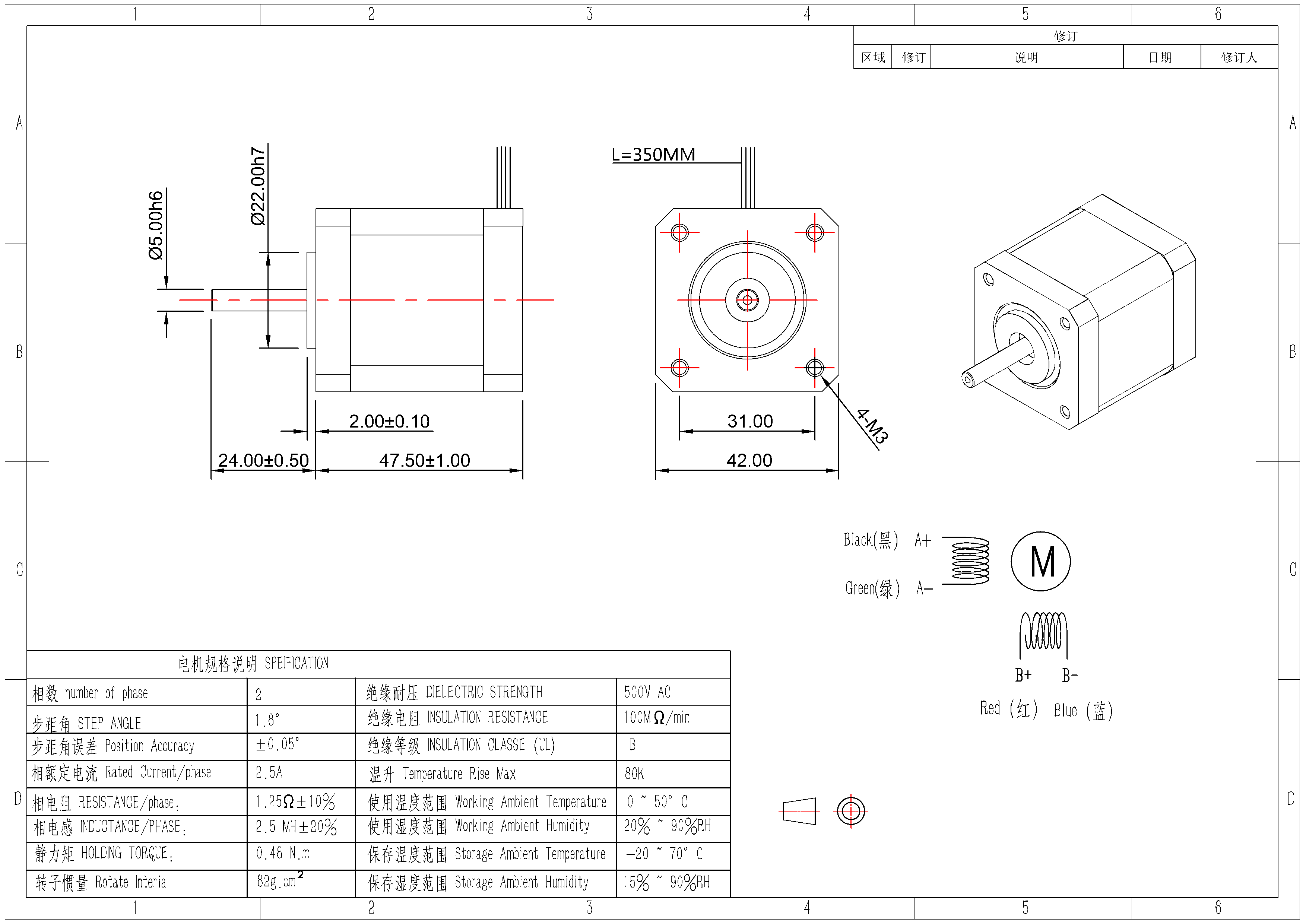

MSP42 high-torque stepper dimension drawing — MSP42 · high-torque motor

Body length, shaft end, and encoder versions of the same MSP size can differ. Before you freeze the design, check the selected version against the final configurator code.

Nameplate data

Version	Body length mm	Rated current A	Phase resistance Ω	Phase inductance mH	Holding torque N·m	Rotor inertia g·cm²	Shaft diameter
Standard	40.0	0.8	7.5	8.1	0.4	57	Ø5h6
High torque	47.5	2.5	1.25	2.5	0.48	82	Ø5h6

Engineering documents

Dimension drawings, 3D models, and the complete manual are supplied on request. This page does not offer downloads. Contact us with the model and the documents you need.

Matched drive

This frame pairs with MSP42. Supply, wiring, and software entry are on the drive page. Open loop, closed loop, brake, and gearbox are selected in the configurator.
