PF80L1
Inline stage 1 for an 80 flange / 750 W motor. Output flange □85, shaft Ø19, typical stage-1 torque 42–52 N·m.
- 80Flange
- Stage 1 L1Stages
- InlineMounting
- about 139 mm (40.5 + 98.8)Reference length
What this unit does
For the MSP750 integrated drive. The input is a clamp hub; do not add a coupling. In the software, enter the ratio in the travel conversion: revolutions × ratio = output revolutions.
| Item | Value |
|---|---|
| Series | PF80L1 |
| Matched motor | 750 W servo / 80 frame |
| Rated input speed | 3000 r/min |
| Backlash | ≤12 arcmin |
| Efficiency | ≥96% |
| Noise | ≤68 dB |
| Lubrication | Synthetic grease, maintenance-free |
| Mounting | Any orientation |
Ratio and rated torque
Check peak torque at 2 × rated. For continuous heavy duty, apply a service factor of 1.5–2.
| Ratio | Rated N·m | Peak |
|---|---|---|
| 3 | 45 | 2 × rated |
| 4 | 50 | 2 × rated |
| 5 | 52 | 2 × rated |
| 7 | 48 | 2 × rated |
| 10 | 42 | 2 × rated |

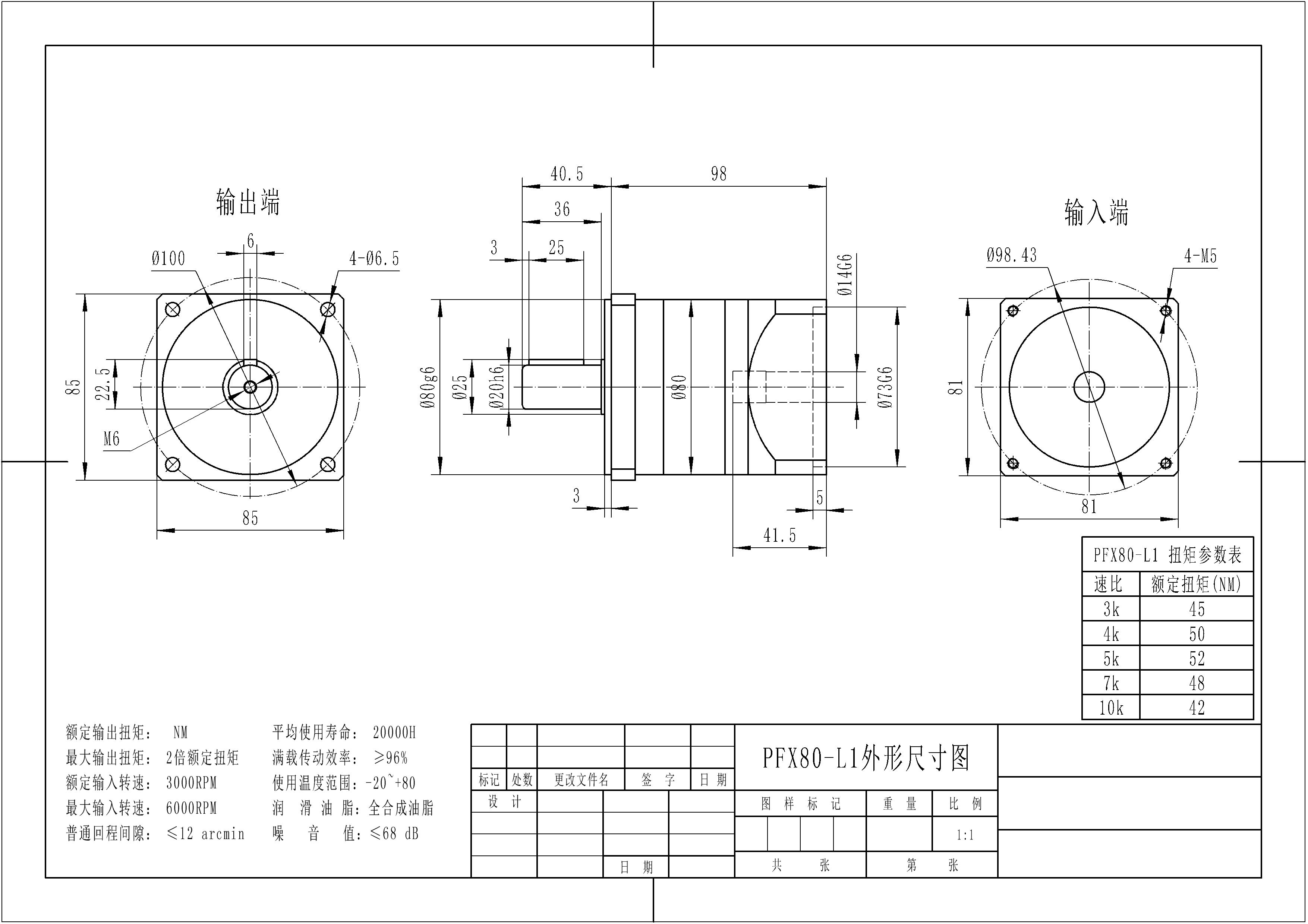

Outline and dimensions
Mounting holes, pilot, and shaft extension follow the drawing. If the motor shaft diameter changes, recalculate the input clamp hub.
Documents
Dimension drawings, 3D models, and the complete manual are supplied on request. This page does not offer downloads. Contact us with the model and the documents you need.
Order code
The order code is the series plus the ratio, without the flange: PF3 / PF4 / PF5 / PF7 / PF10. Full string example: XR-Online-MSP750-C-2M-PF5.
With the order, send the drive and motor model, target output speed, load torque, and whether a brake is required. The input clamp bore must match the motor shaft.
