1000 W servo motor
80 frame, rated 3.2 N·m, mass 2.64 kg.
- 1000WPower
- 3.2 N·mRated torque
- 80Frame
- 2.64 kgMass
Performance
| Item | Value |
|---|---|
| Supply voltage | 220 V |
| Rated power | 1000 W |
| Rated torque | 3.2 N·m |
| Peak torque | 6.4 N·m |
| Rated current | 4.6 A |
| Rotor inertia | 2.1×10⁻⁴ kg·m² |
| Rated / maximum speed | 3000 / 5200 r/min |
| Encoder | 17 bit |
| Mass | 2.64 kg |
Mounting
| Item | Value |
|---|---|
| Frame | 80 |
| Body length L | 115.5 mm |
| Brake length L | 152 mm |
| Flange | 80 |
| Pilot | Ø70h7 |
| Pilot height | 3.00±0.10 mm |
| PCD / mounting holes | Ø90 · 4-Ø6.8 |
| Shaft diameter × extension | Ø19h6 × 35±0.5 mm |
| Key width × length | 6 × 21.5 mm |
| Shaft-end thread | M6×12 |
Versions
| Version | Encoder | Brake | Body length mm |
|---|---|---|---|
| Standard | Incremental | No | 115.5 |
| Absolute | 17-bit absolute | No | 115.5 |
| Brake | Incremental | Yes | 152 |
| Brake + absolute | 17-bit absolute | Yes | 152 |
Brake wiring: Integrated servo drive.
Engineering documents

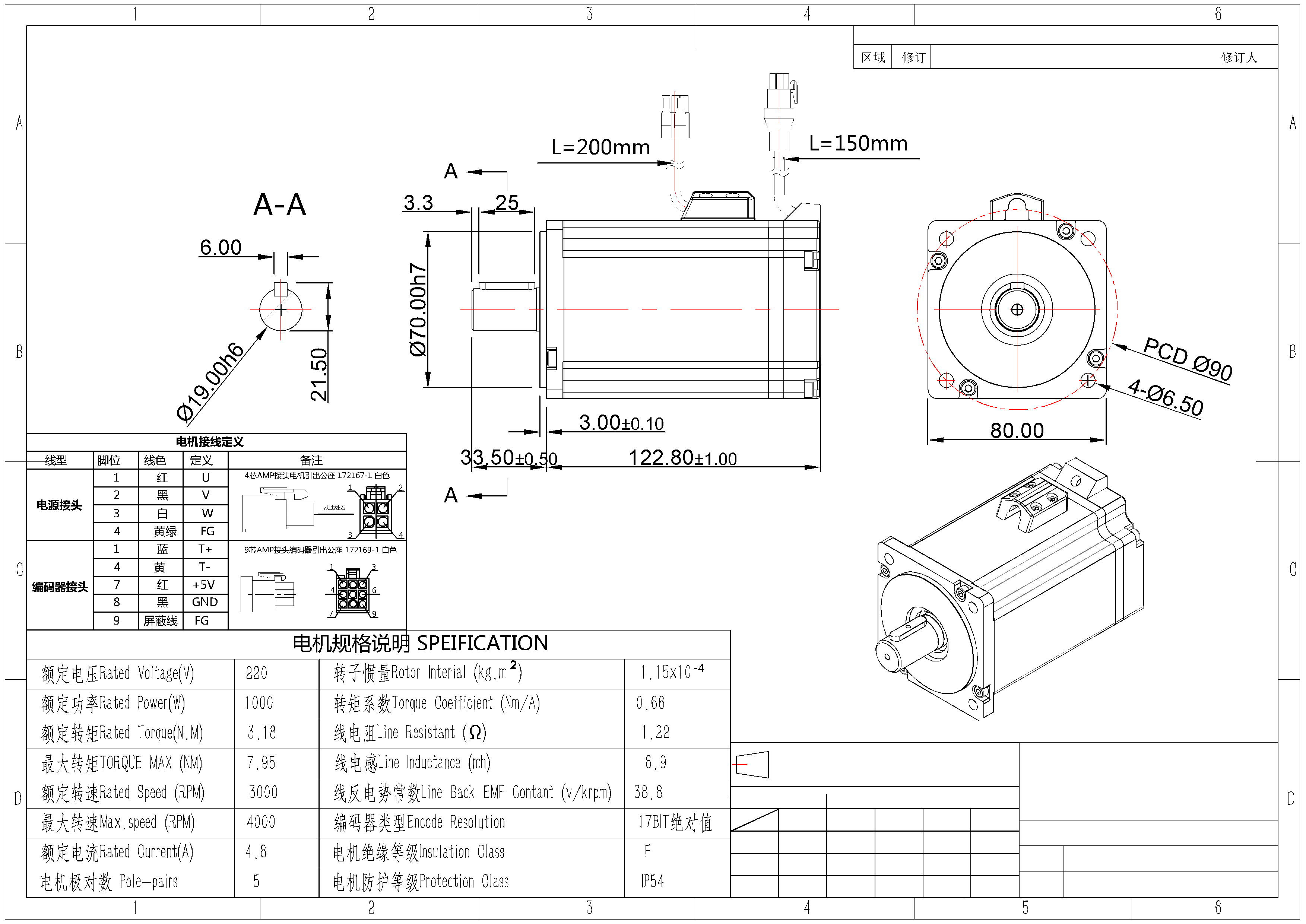

Dimension drawings, 3D models, and the complete manual are supplied on request. This page does not offer downloads. Contact us with the model and the documents you need.
