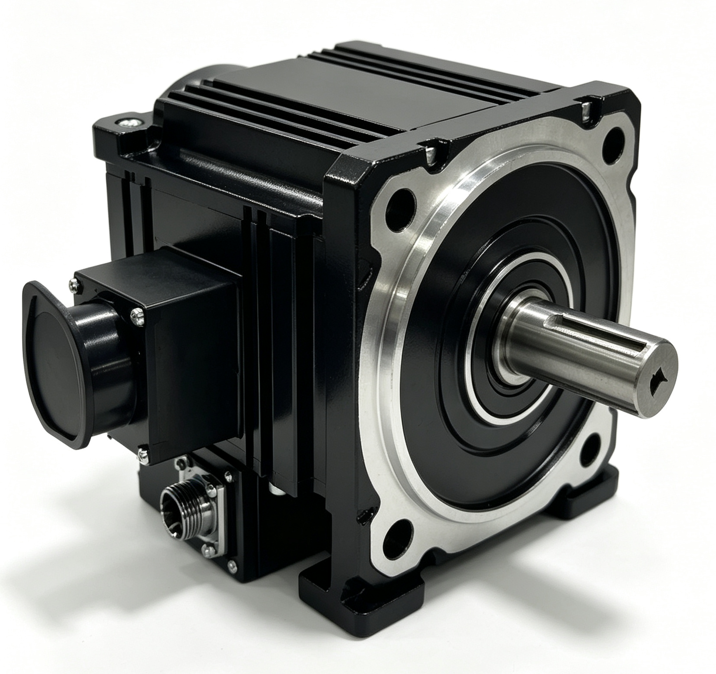

1500 W servo motor
130 frame, rated 4.8 N·m, mass 4.80 kg.
- 1500WPower
- 4.8 N·mRated torque
- 130Frame
- 4.80 kgMass
Performance
| Item | Value |
|---|---|
| Supply voltage | 220 V |
| Rated power | 1500 W |
| Rated torque | 4.8 N·m |
| Peak torque | 14.4 N·m |
| Rated current | 6 A |
| Rotor inertia | 7.2×10⁻⁴ kg·m² |
| Rated / maximum speed | 3000 / 4000 r/min |
| Encoder | 17 bit |
| Mass | 4.80 kg |
Mounting
| Item | Value |
|---|---|
| Frame | 130 |
| Body length L | 137.7 mm |
| Brake length L | 171.1 mm |
| Flange | 130 (outside diameter Ø145) |
| Pilot | Ø110h7 |
| Pilot height | 6 mm |
| Mounting holes | 4-Ø9 |
| Shaft diameter × extension | Ø22 × 55±1 mm |
| Key width × length | 6 × 24.5 mm |
| Shaft-end thread | M6×20 |
Versions
| Version | Encoder | Brake | Body length mm |
|---|---|---|---|
| Standard | Incremental | No | 137.7 |
| Absolute | 17-bit absolute | No | 137.7 |
| Brake | Incremental | Yes | 171.1 |
| Brake + absolute | 17-bit absolute | Yes | 171.1 |
Brake wiring: Integrated servo drive.
Engineering documents
Dimension drawings, 3D models, and the complete manual are supplied on request. This page does not offer downloads. Contact us with the model and the documents you need.
