MSP Integrated Stepper Drive

Drive, control, and communication are in one unit. Connect power, the motor, and an Ethernet cable, and the axis can move.
Models: MSP20, MSP28, MSP35, MSP42, MSP57, MSP60, and MSP86.

DC 24–48VSupply
20–86Frame sizes
Open-loop / closed-loopMode
Several XMatrix functionsMatching software

Contact with the order code Dimensions and interface drawing

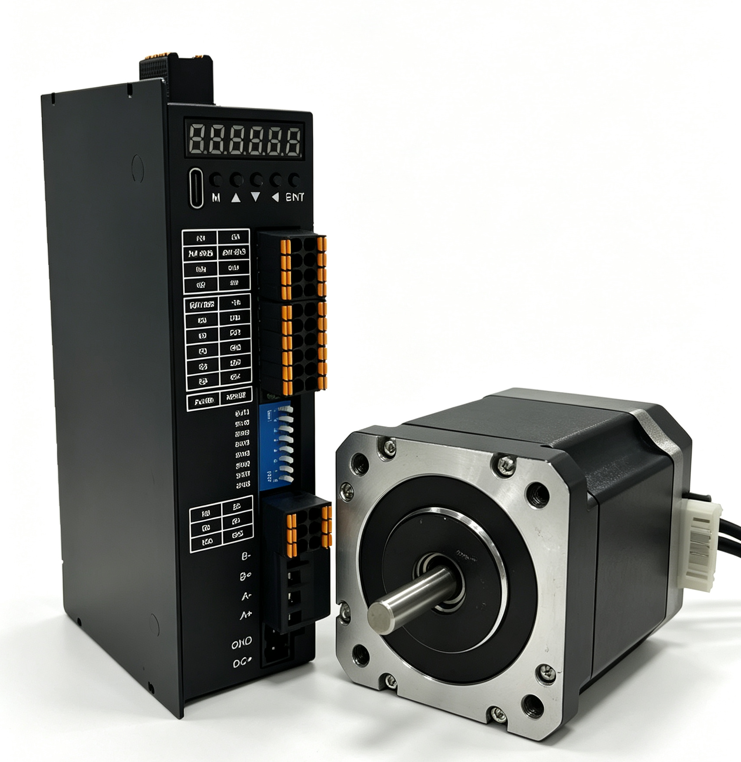

Integrated drive and matched motor. Wiring and terminals follow the dimension and pinout drawings on this page.

Single-axis connection

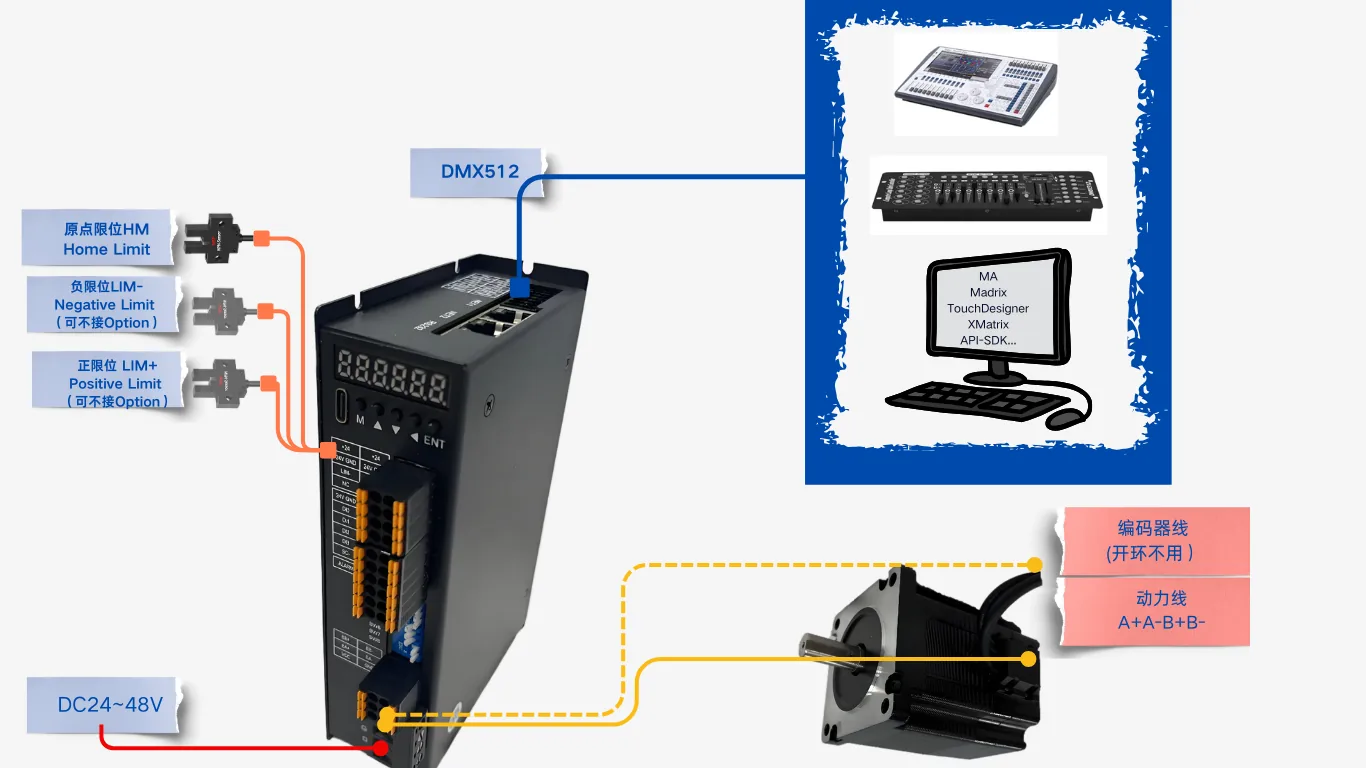

Single-axis system wiring of the MSP20–86 integrated stepper drive — The MSP controller runs motion for that axis and connects DC 24–48V, the two-phase stepper, the home sensor, and the positive and negative limits.

Quick check

Fits: A two-phase hybrid stepper in frame 20–86, when software, motion control, and the drive should sit in the same controller.

Confirm: Frame size, rated current, open-loop or closed-loop, brake, and cable length. Above frame 86, or a non-standard drive condition, check MSP1001 first.

One Ethernet daisy chain

Several MSP20–86 units daisy-chained in order over Ethernet — Each controller is one axis. Units in the same group are connected in order and separated by station address.

Several network groups

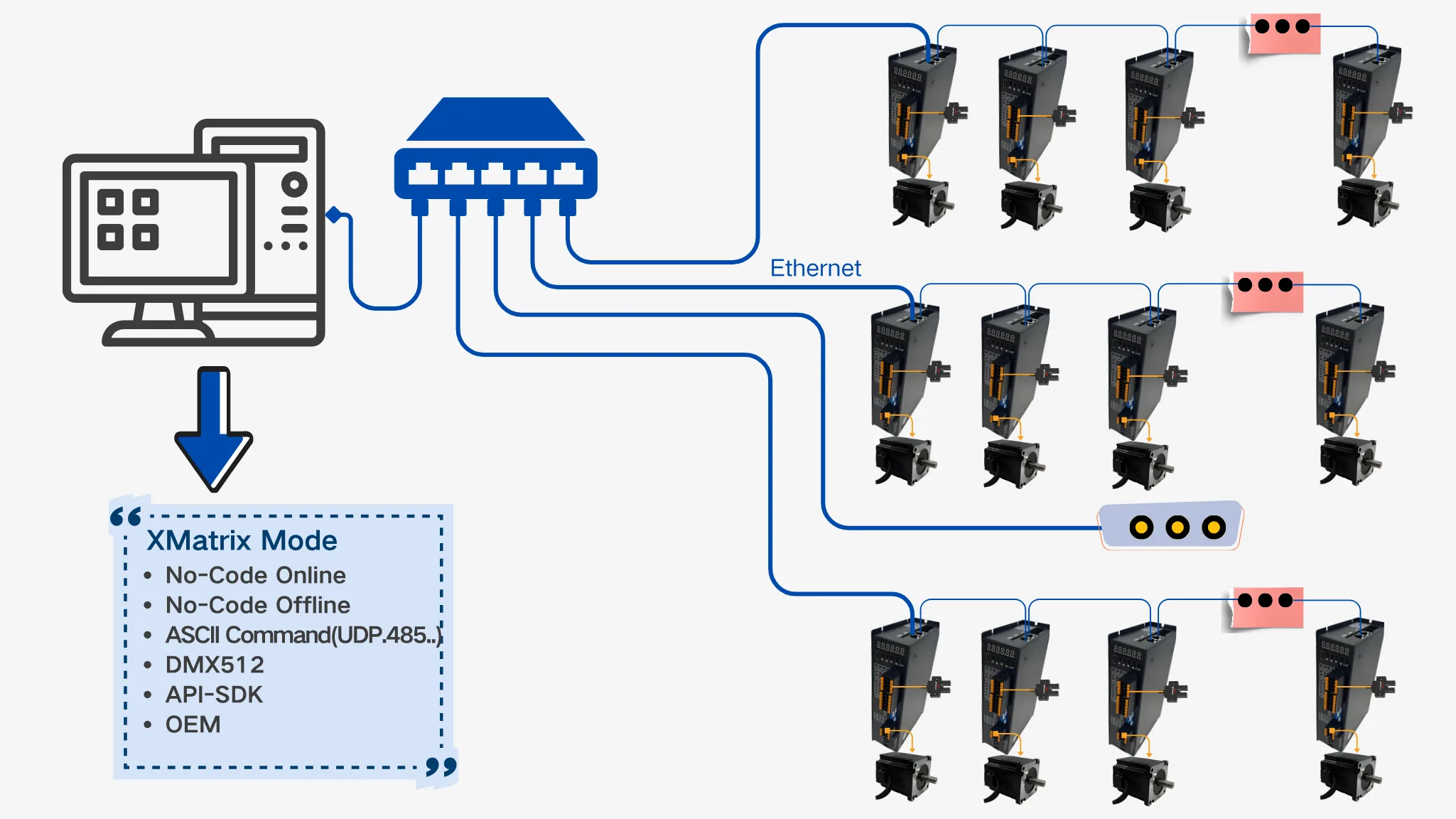

A network switch joining several MSP20–86 stepper daisy chains — When you need more than one daisy chain, a network switch groups them. Axis count and the network plan are confirmed per project.

Controller interfaces

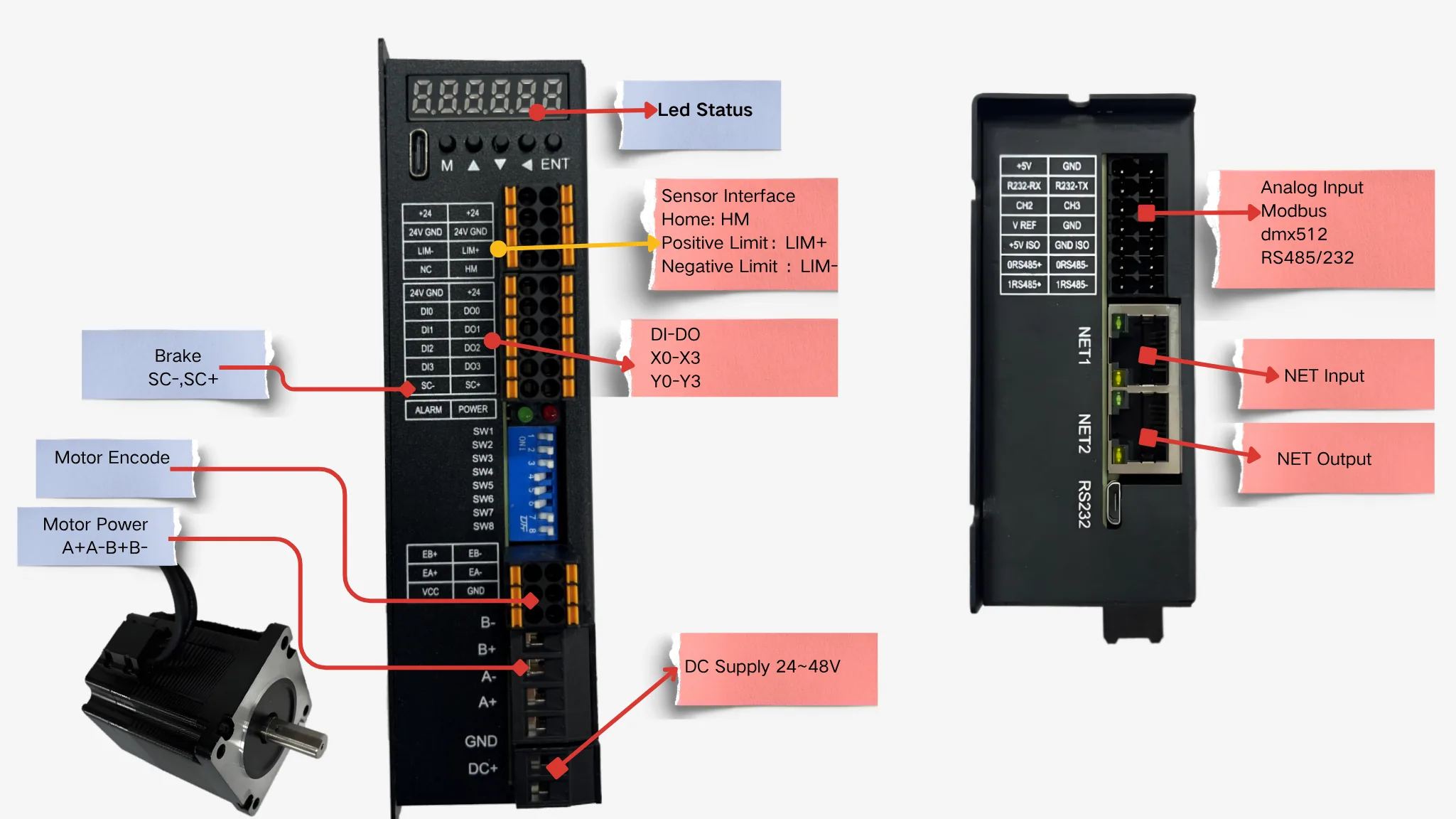

Power, motor, encoder, brake, sensors, I/O, and network on MSP20–86 — The interface drawing is for orientation. Build from the silkscreen, the terminal table below, and the drawing supplied with the unit.

Where it sits

The MSP integrated stepper drive puts the motion controller, the drive, and protocol handling in one module, and it connects directly to a two-phase hybrid stepper. The usual layout does not add an external PLC, a motion card, or a repeated pulse harness. The hardware segment is written MSPXXX-[O/C]-[SC]-[cable]: XXX is replaced with frame 20, 28, 35, 42, 57, 60, or 86; open-loop is O, closed-loop is C, and a brake option is SC. The full XMSP configuration code also prefixes the selected XMatrix software function.

Direct connection to a two-phase hybrid stepper, frame sizes 20–86.
Open-loop or closed-loop. Closed-loop uses an optical encoder and samples position every 50 µs.
Brake control output (open-collector, external 24 V relay).

Ratings

Item	Description
Matched motor	Two-phase hybrid steppers, frame 20 / 28 / 35 / 42 / 57 / 60 / 86
Operating mode	Open-loop / closed-loop (vector mode, power-angle mode)
Supply	DC 24–48V
Encoder	Closed-loop: optical encoder, 50 µs position sample
Brake	Supported (open-collector output, external relay)
IO	4 in, 4 out
Communication	Ethernet daisy chain; DMX512 included
Protection	Overcurrent / overvoltage / following-error

Wiring and interfaces

The minimum system needs three connections: power + motor phases + one Ethernet cable.

Minimum wiring: 2 power wires (V+ / GND) + 4 motor phase wires (A+ / A− / B+ / B−) + 1 Ethernet cable. For several axes, daisy-chain the Ethernet cables and separate motors by station address.

Current and I/O

Item	Description
Open-loop current	1–6 A (set from the frame size and the motor rated current)
Closed-loop current	1–4A
IO	4 in, 4 out

Microstep DIP

Microstepping is set by DIP switches SW3–SW6. 0 means ON, 1 means OFF:

Microstep	SW3	SW4	SW5	SW6
Default	1	1	1	1
800	0	1	1	1
1600	1	0	1	1
3200	0	0	1	1
6400	1	1	0	1
12800	0	1	0	1
25600	1	0	0	1
51200	0	0	0	1
1000	1	1	1	0
2000	0	1	1	0
4000	1	0	1	0
5000	0	0	1	0
8000	1	1	0	0
10000	0	1	0	0
20000	1	0	0	0
40000	0	0	0	0

Function DIP

Switch	Function	Description
SW1	Closed-loop mode	0 = power angle, 1 = vector
SW2	Direction	off=CCW,on=CW
SW7	Command smoothing	on = enabled, off = disabled
SW8	Open / closed loop	off = closed-loop, on = open-loop

Terminal list

The table follows the drawing supplied with the unit. Terminal names match the silkscreen. The source drawing is available on request: MSP57 interface and dimension drawing.

Group	Terminal / interface	Description
Power	`DC+ / GND`	DC 24–48V input
Motor	`A+ / A− / B+ / B−`	Two-phase stepper phases
Encoder (closed-loop)	`EA+ / EA− / EB+ / EB− · VCC / GND`	Encoder feedback and supply for a closed-loop motor
Limits and home	`LIM− / LIM+ · HM · NC`	Negative limit / positive limit / home; NC is unused
Digital inputs	`DI0 / DI1 / DI2 / DI3`	4 inputs (with 24V GND / +24)
Digital outputs	`DO0 / DO1 / DO2 / DO3`	4 outputs
Switch	`SW1 – SW8`	Microstep SW3–SW6; function SW1 / SW2 / SW7 / SW8 (see the two tables above)
Communication	`RS232-RX / RS232-TX · 0RS485± / 1RS485± · NET1 / NET2`	Serial ports and a dual-Ethernet daisy chain
Status lamps	`POWER / ALARM`	Power lamp and alarm lamp
Marks on the drawing	`SC− / SC+ · CH2 / CH3 · V REF · +5V ISO / GND ISO`	Silkscreen copied from the official drawing. Confirm the use on the project.

Outline and interface drawings

Click an image to view it full size. Engineering drawings are available on request.

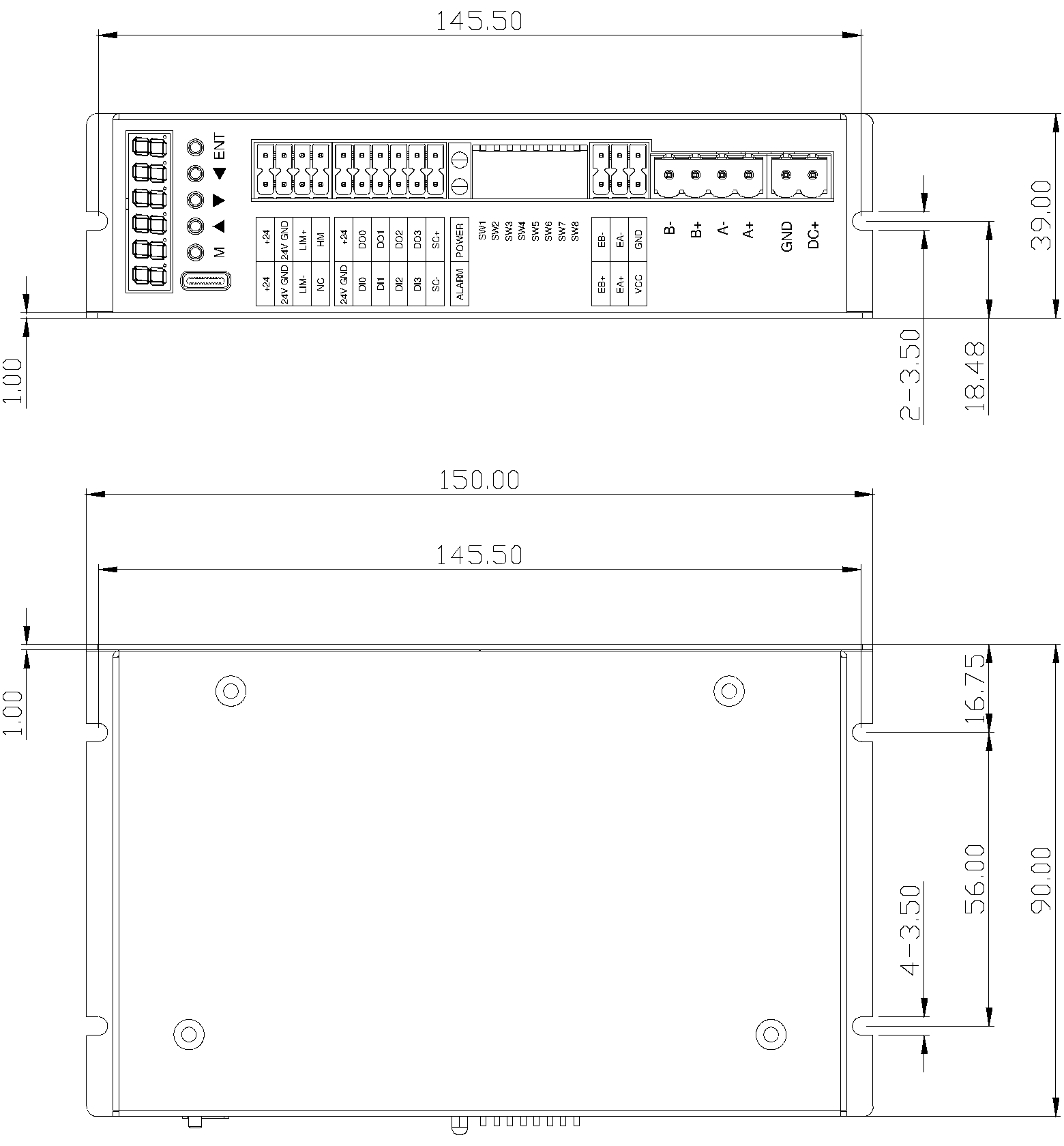

Stepper drive outline and mounting dimensions — Outline and mounting dimensionsRequest the PDF

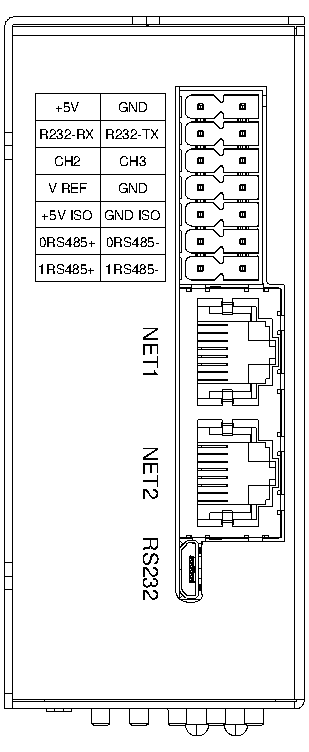

Stepper drive side interface definition — Side interface definitionRequest the PDF

Units are marked on the source drawing. Wire to the terminal silkscreen.

3D models are for mechanical pre-assembly. Contact us for the engineering files.

Request the STEP model

Matching software

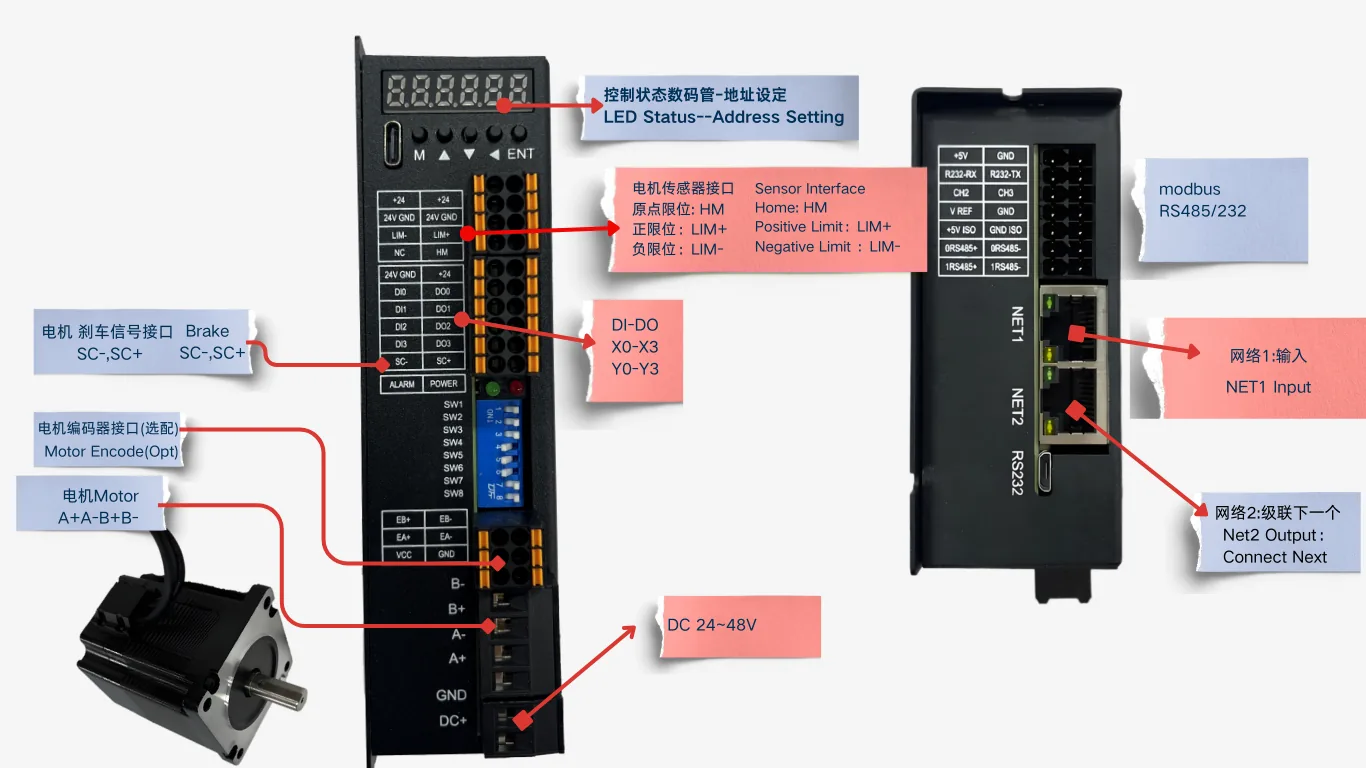

Stepper-path I/O and limit wiring — I/O / limit wiring: home, positive and negative limits, and outputs

Stepper-path DMX512 wiring — DMX512: the console bus enters the RS485 / DMX port

The three hardware families share one software interface:

XMatrix Online — point-and-click moves and sequences
XMatrix Command Interface — send ASCII commands
XMatrix DMX512 Interface — a lighting console drives the motor directly (included)
XMatrix API-SDK / OEM — deeper development, or a version for one industry

Supported motors

The first table is a quick check by frame size and torque range. The second table lists nameplate values of the ratings published now. The actual motor is confirmed from the MSP rating and the selected version.

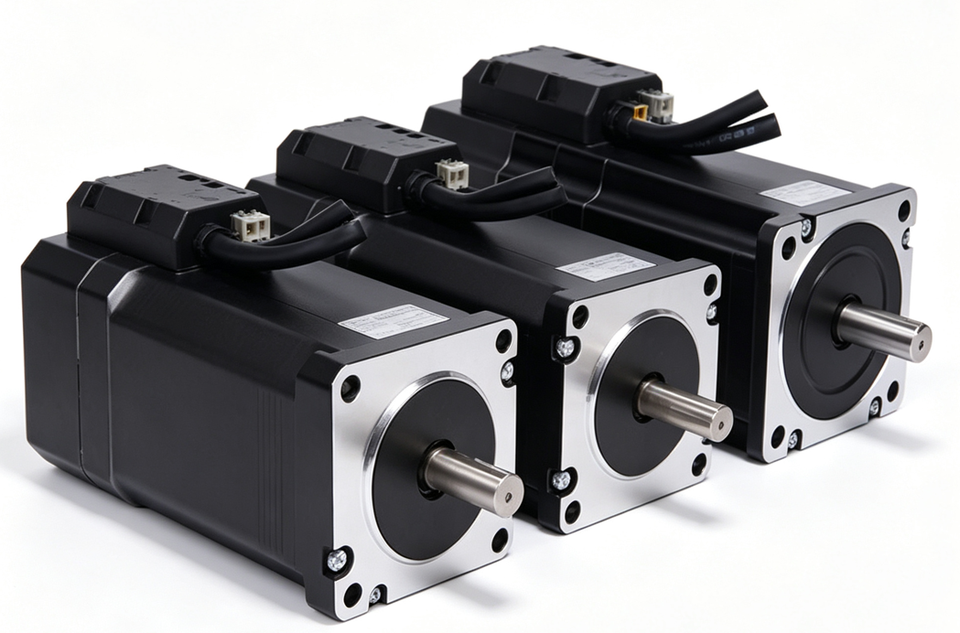

Closed-loop stepper outline. Wiring and terminals follow the dimension and pinout drawings on this page.

MSP rating	NEMA	Frame torque range	Typical use
MSP20	NEMA8	0.02–0.04 N·m	Smaller frame; the drawing is issued per project
MSP28	NEMA11	0.06–0.12 N·m	Smaller frame; the drawing is issued per project
MSP35	NEMA14	0.10–0.20 N·m	Smaller frame; the drawing is issued per project
MSP42	NEMA17	0.4–0.6 N·m	Light positioning, feeding, small mechanisms
MSP57	NEMA23	0.8–3.0 N·m	Labeling, conveying, jog stations
MSP60	NEMA24	3.0–3.5 N·m	Medium load, open-close mechanisms
MSP86	NEMA34	4.5–12 N·m	Heavy load, multi-station, leadscrew drive

MSP rating	Version	Body length mm	Rated current A	Phase resistance Ω	Phase inductance mH	Holding torque N·m	Rotor inertia g·cm²	Shaft diameter
MSP42	Standard	40.0	0.8	7.5	8.1	0.4	57	Ø5h6
MSP42	High torque	47.5	2.5	1.25	2.5	0.48	82	Ø5h6
MSP57	Standard	80 max	5.0	0.39	1.7	2.0	480	Ø8h6
MSP60	Standard	105.3	5.0	0.45	2.0	3.0	690	Ø8h6
MSP86	Standard	100.0	6.0	0.34	2.5	4.5	1800	Ø14

Phase resistance tolerance ±10%, phase inductance ±20%. The closed-loop version adds an encoder, and body length includes the encoder cover. Shaft diameter h6 is a tolerance zone, not a size.

Mounting dimensions	MSP42 standard	MSP42 high torque	MSP57	MSP60	MSP86
Front pilot diameter	Ø22.00h7	Ø22.00h7	Ø38.1h7	Ø36.00h7	Ø73.00h7
Mounting holes	4-M3	4-M3	4-Ø5	4-Ø5.00	4-Ø6.5
Mounting-hole pitch	31.00 square	31.00 square	47.14 square	50.00 square	69.58 square
Shaft extension	24.0±0.5	24.0±0.5	21±0.5	21.0±0.5	38.0±0.5

Dimension PDFs and 3D models are grouped under stepper motor drawings.

Order-code step	Matched motor	Supply	Default cable
MSP20	Frame 20 stepper motor	DC 24–48V	1 m (options 1 m / 2 m / 3 m / 4 m / 5 m / 8 m / 10 m / 15 m / 20 m)
MSP28	Frame 28 stepper motor	DC 24–48V	1 m (options 1 m / 2 m / 3 m / 4 m / 5 m / 8 m / 10 m / 15 m / 20 m)
MSP35	Frame 35 stepper motor	DC 24–48V	1 m (options 1 m / 2 m / 3 m / 4 m / 5 m / 8 m / 10 m / 15 m / 20 m)
MSP42	Frame 42 stepper motor	DC 24–48V	1 m (options 1 m / 2 m / 3 m / 4 m / 5 m / 8 m / 10 m / 15 m / 20 m)
MSP57	Frame 57 stepper motor	DC 24–48V	1 m (options 1 m / 2 m / 3 m / 4 m / 5 m / 8 m / 10 m / 15 m / 20 m)
MSP60	Frame 60 stepper motor	DC 24–48V	1 m (options 1 m / 2 m / 3 m / 4 m / 5 m / 8 m / 10 m / 15 m / 20 m)
MSP86	Frame 86 stepper motor	DC 24–48V	1 m (options 1 m / 2 m / 3 m / 4 m / 5 m / 8 m / 10 m / 15 m / 20 m)

Troubleshooting

Symptom	Check first
No response at power-up, lamps off	Is the supply DC 24–48V? Are V+ and GND reversed? Is the supply large enough?
Motor does not turn, and it makes noise	Phase order A+ / A− / B+ / B−; does the current setting match the motor rated current? Is microstepping left at Default?
Lost steps, position is off	Is acceleration too high? Is the current setting low? For an open-loop axis, consider closed-loop (set SW8 off)
The host cannot connect	Is the Ethernet link a direct cable or the same subnet? Install WinPcap first. On a daisy chain, do station addresses start at 0?
Connected, but the move does not run	Has the axis been homed? Is a limit active? Is maximum travel 0? Is the device in alarm?
Limit or home is not recognized	NPN sensor wiring and supply; is the flag in the slot? Does the signal polarity match the parameter?

Check order: Supply → wiring → current and microstepping → network and station address → home and limits → software parameters and device status. Confirm each layer before the next.

First run

Connect DC 24–48V
Connect the stepper phases (A+ / A− / B+ / B−)
Plug in Ethernet, to the host or to the next unit in the chain
Open the XMatrix mode or interface you selected (Online / Command / DMX512 …)
Run the first move and confirm the motor turns
