86-frame stepper motor
Stepper motor paired with MSP86 in the configurator. Check the outline, then confirm the nameplate and the mounting holes.
- 86Frame
- Two-phase 1.8°Stepper
- Open / closed loopOptional
- MSP86Matched code

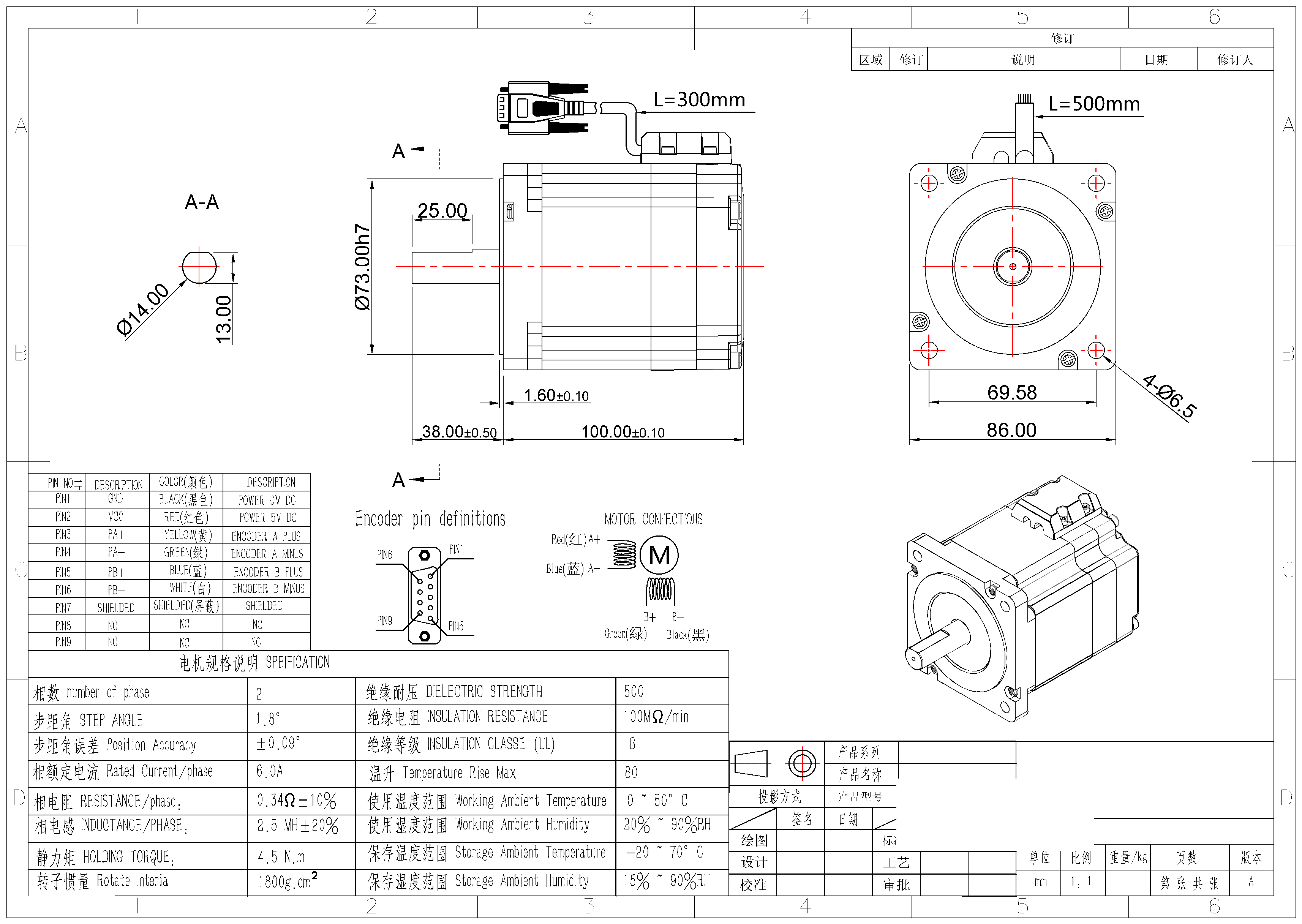

Outline and dimensions
Body length, shaft end, and encoder versions of the same MSP size can differ. Before you freeze the design, check the selected version against the final configurator code.
Nameplate data
| Version | Body length mm | Rated current A | Phase resistance Ω | Phase inductance mH | Holding torque N·m | Rotor inertia g·cm² | Shaft diameter |
|---|---|---|---|---|---|---|---|
| Standard | 100.0 | 6.0 | 0.34 | 2.5 | 4.5 | 1800 | Ø14 |
Engineering documents
Dimension drawings, 3D models, and the complete manual are supplied on request. This page does not offer downloads. Contact us with the model and the documents you need.
Matched drive
This frame pairs with MSP86. Supply, wiring, and software entry are on the drive page. Open loop, closed loop, brake, and gearbox are selected in the configurator.
