SX674-WR
Flush mount, the other orientation. Slot width 5 mm, mounting pitch 7 mm, NPN, 1 m cable, black / white outputs. Prefer this unit for a new bracket.
- 5 mmSlot width
- 7 mmHole pitch
- 2-Φ3.5Mounting holes
- 1 mCable
Specification
Mounting holes and wiring are below. Other outline dimensions are on the sensor overview.
| Item | Value |
|---|---|
| Order code | SX674-WR |
| Detection | Through-beam, slot width 5 mm |
| Target | Opaque, 2 × 0.8 mm or larger |
| Hysteresis | ≤ 0.025 mm |
| Supply | DC 5–24 V |
| Current consumption | NPN ≤ 35 mA |
| Output | NPN open collector, 100 mA |
| Response | ≥ 1 kHz, typical 3 kHz |
| Temperature | −25 to +55 °C |
| Housing | PBT; use inside a cabinet |
The documents shipped with the unit govern. Do not use this unit where it is washed down or exposed to heavy dust.

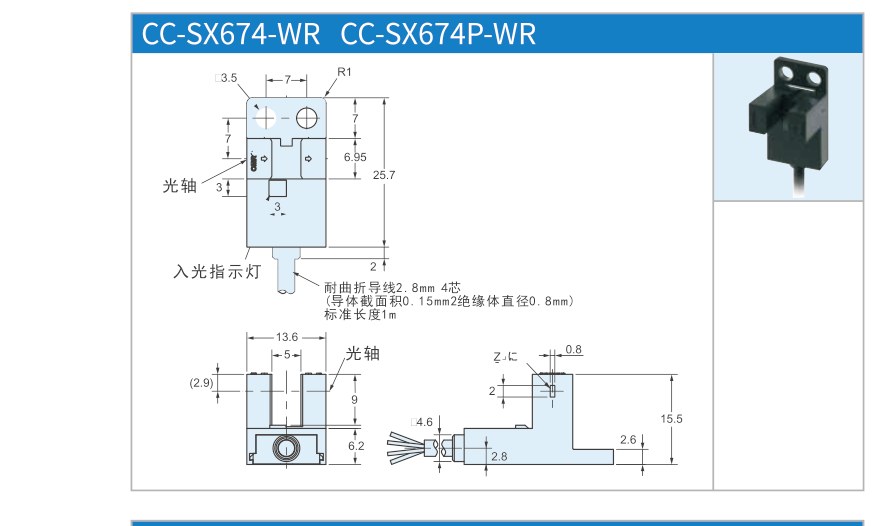

Outline dimensions
| Item | mm |
|---|---|
| Mounting pitch | 7 |
| Mounting holes | 2-Φ3.5 |
| Chamfer | 2-R1 |
| Slot width | 5 |
| Slot depth | 9.3 |
| Slot width direction | 13.6 |
| Side envelope height | 15.5 |
| Reference height | 21.5 |

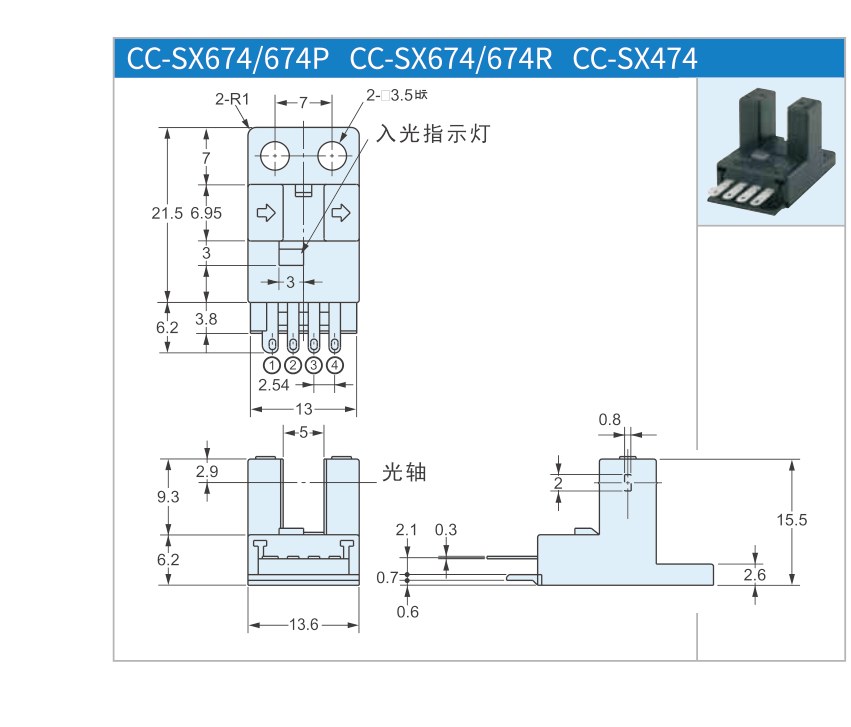

Slot and hole pitch are the same for both cable exits. Only the connection differs. Drill 2-Φ3.5 at a pitch of 7.

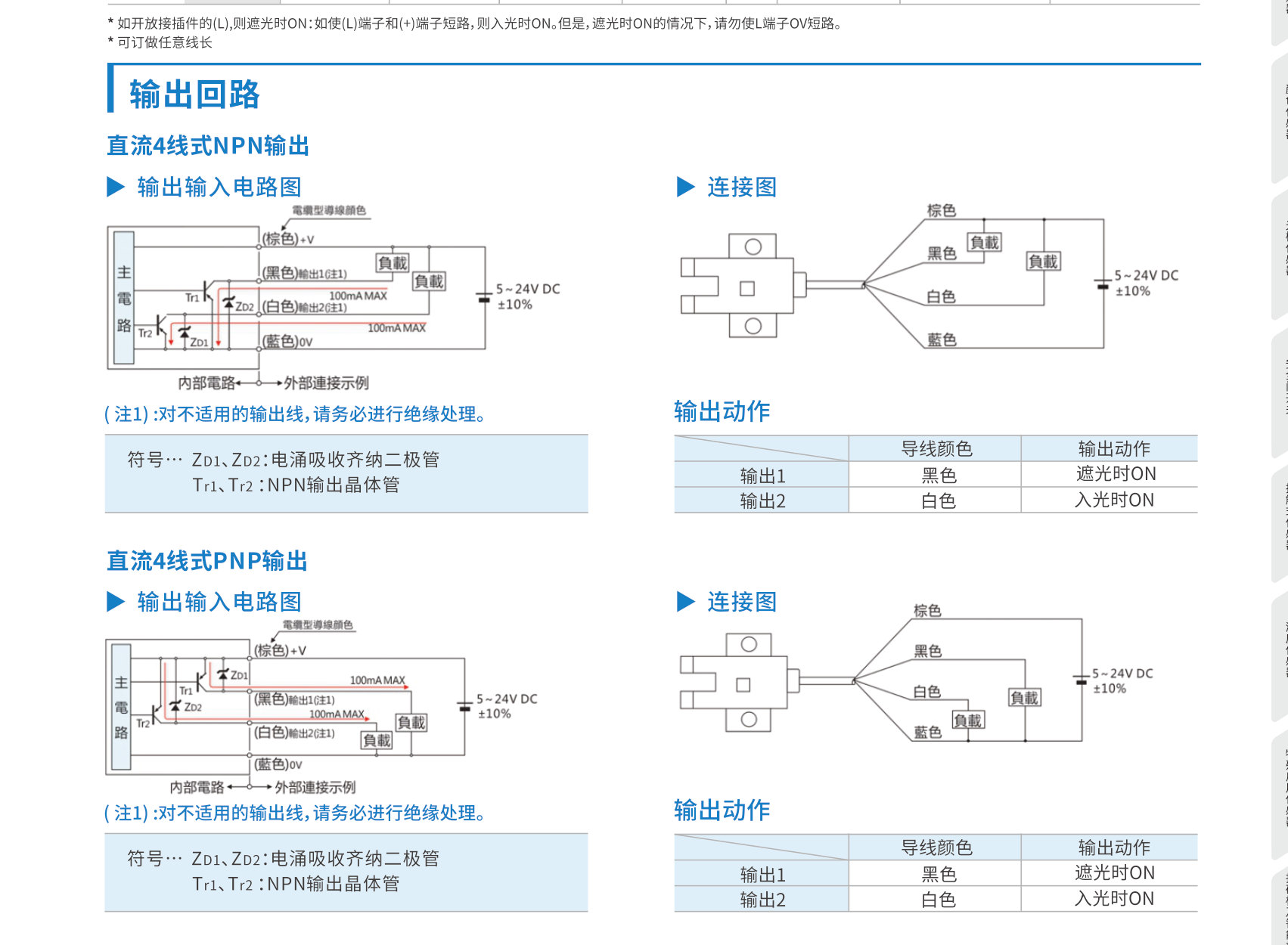

Wiring
Four-wire DC. Insulate any output wire you do not use.
| Wire color | Function | Connect to |
|---|---|---|
| Brown | +V | 24 V |
| Blue | 0 V | GND |
| Black | Output 1 · dark ON | Usually a limit |
| White | Output 2 · light ON | Choose from the homing direction |
Order code
| Code | Cable exit | Logic |
|---|---|---|
SX674-WR | Cable 1 m | Black dark-ON / white light-ON |
One axis defaults to 3 pieces (home + both limits). If the cable must be longer, state the metres. If the pitch is not 7 mm, do not rework the holes to force this unit.
Documents
Dimension drawings, 3D models, and the complete manual are supplied on request. This page does not offer downloads. Contact us with the model and the documents you need.
