Slotted photoelectric sensors, slot width 5 mm. A vane enters the slot and the output changes state. One for home, two for positive and negative limits.

Slotted photoelectric switches
Through-beam slot. The output changes state when the vane enters the slot.
  • Home ×1Homing
  • Limits ×2Both ends
  • 5 mmSlot width
  • NPNDC 5–24 V
Standard models SX674-WR

Function

The infrared emitter and receiver sit on the two sides of one U housing. A vane entering the 5 mm slot blocks the beam and the output changes state. Detection does not depend on color, and nothing is mounted on the opposite side. It fits a stage, a nut block, or a home dog.

UseQtyIf you leave it out
Home1After power-up the absolute position is unknown and the move does not start from the same point
Positive and negative limits2A program error or a failed home can drive into the hard stop
Absolute encoder: homing is not required after power-up, so the home sensor can be omitted. Limits should still be fitted. They are mechanical protection.

How to choose

  1. New bracket: start with SX674-WR, flush mount, 7 mm hole pitch, 1 m cable.
  2. Existing holes: use the table. Pitch 19: 670 / 671 / 672. Pitch 7: 673 / 674 / 676 / 677. Slot center height 10 mm: 675. Do not rework the holes to force a fit.
  3. Then the cable exit. 670–674 can be a connector or a cable. 675 / 676 / 677 are cable only.
  4. Then the logic. Limits usually use dark-ON (black wire). For home, choose black or white from the homing direction. Do not land both wires on the same input.
Commissioning order: mount it, confirm in the software that the signal changes state, then home. Route the signal cable apart from the power cable.

Standard models

Units are mm.

ModelOutlineSlotHole pitchMounting holesCable exit
SX670Standard L5192-Φ3.2Connector / cable
SX671L type5192-Φ3.2Connector / cable
SX672T flush, 7 mm519Pitch 19Connector / cable
SX673Flush mount572-Φ3.2Connector / cable
SX674-WRFlush (other orientation)572-Φ3.5Cable 1 m
SX675T flush, 10 mm5—Φ3.2Cable only
SX676F type57Φ3.5Cable only
SX677R type57Φ3.5Cable only

A connector version needs its mating plug. The standard cable is 1 m and can be extended per project.

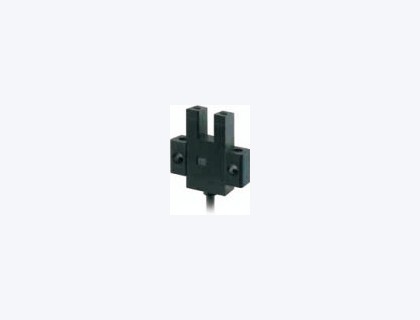

SX670 standard L
SX670

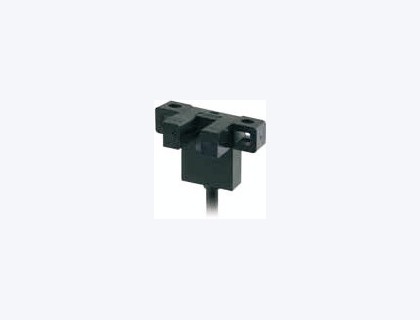

SX671 L type
SX671

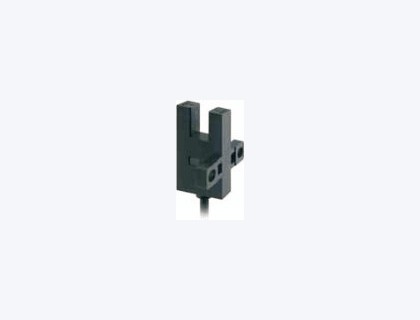

SX672 T flush
SX672

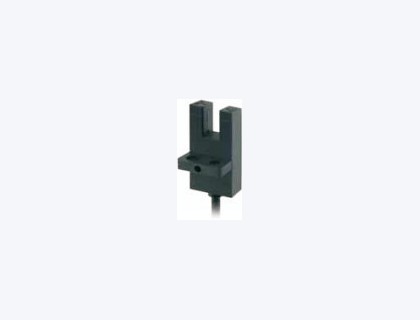

SX673 flush mount
SX673
SX674-WR
SX674-WR

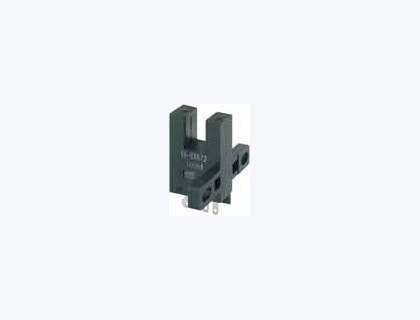

SX675 T flush, 10 mm
SX675

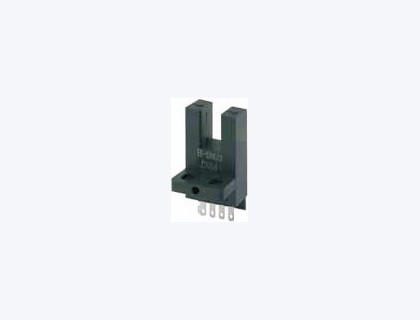

SX676 F type
SX676

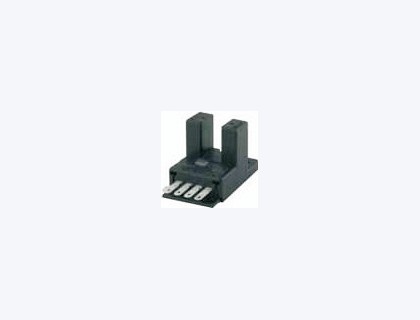

SX677 R type
SX677

Dimension comparison

Units are mm. Drill from the mounting holes and the pitch.

ModelSlotSlot depthPitchMounting holesEnvelopeNotes
SX67059192-Φ3.2Overall 25.4; mounting-face width 6.95; housing height 13.2Standard side mount, chamfer 4-R1
SX67159192-Φ3.2Overall 26.2; mounting-arm height 14.5; side 15.5Slot offset from the mounting face
SX6725919Pitch 19Slot center height 7; body height 22.2; T arm 26Against the profile side
SX6735972-Φ3.2Body 22.2 × 13.4; mounting-face thickness 12.8; optical-axis height 14.4Flush, holes Φ3.2
SX674-WR59.372-Φ3.5Reference height 21.5; slot width direction 13.6; side 15.5Orientation differs from 673
SX67559—Φ3.2Slot center height 10; body height 26.2; T arm 19.5Cable only
SX676597Φ3.5Body 26.2 × 13.4; mounting-face width 13.2F type, cable only
SX677597Φ3.5Body 26.2 × 13.4; mounting-face width 13.2R type, mirror of 676

670 / 671 housing thickness is about 6.4 mm, slot wall 0.8, slot opening 2. Connector pin pitch is 2.54.

Order code

The usual code is SX674-WR. Home 1 + limits 2, three pieces by default.

What to stateExample
CodeSX674-WR
QuantityHome 1 + limits 2
Cable exitCable 1 m; if longer, state the metres

Other outlines use the model in the table plus a suffix. No suffix, or A, is the connector. -WR is a 1 m cable. 675 / 676 / 677 are cable only.

Documents

Dimension drawings, 3D models, and the complete manual are supplied on request. This page does not offer downloads. with the model and the documents you need.
